ACT Subaru 04-20 WRX STI Mod Twin HD Street Kit Unsprung Mono-Drive Hub Torque Capacity 700ft/lbs

ACT Subaru 04-20 WRX STI Mod Twin HD Street Kit Unsprung Mono-Drive Hub Torque Capacity 700ft/lbs

Regular price $1,591.73 USD
Regular price $2,021.00 USD Sale price $1,591.73 USD
Sale Sold out

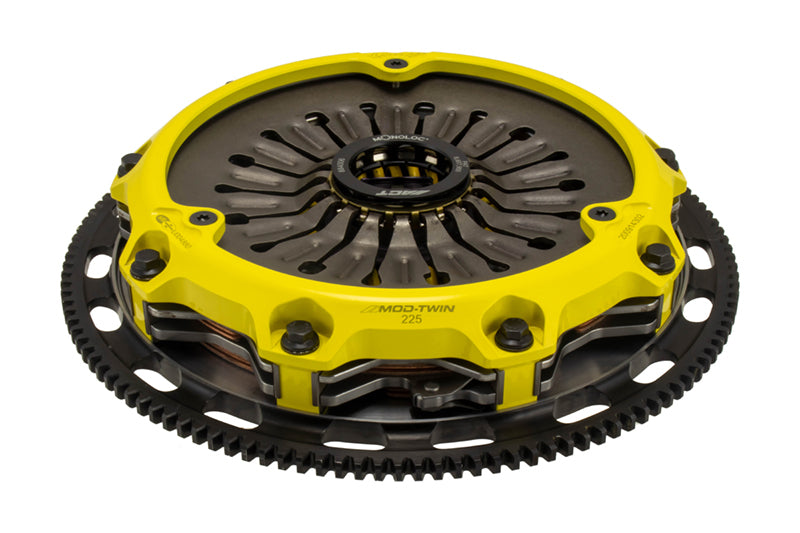

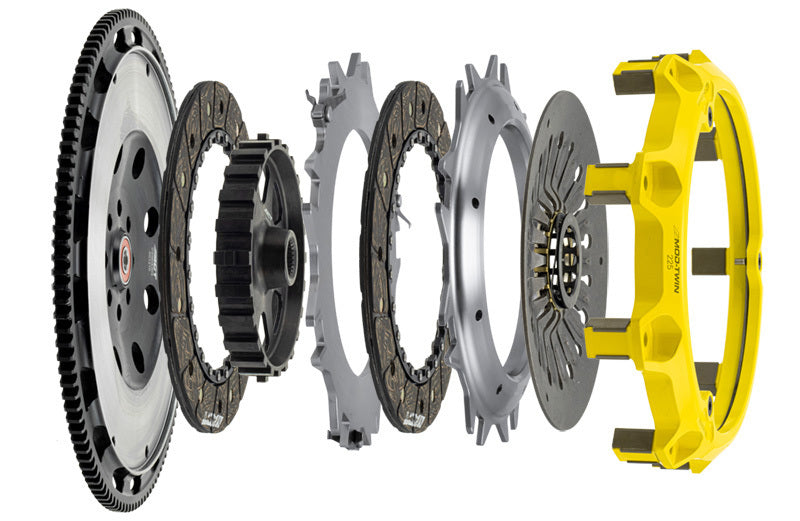

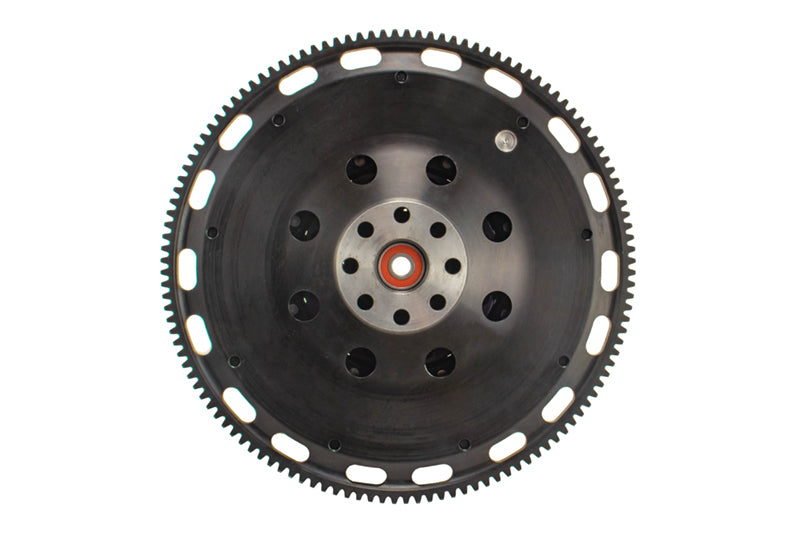

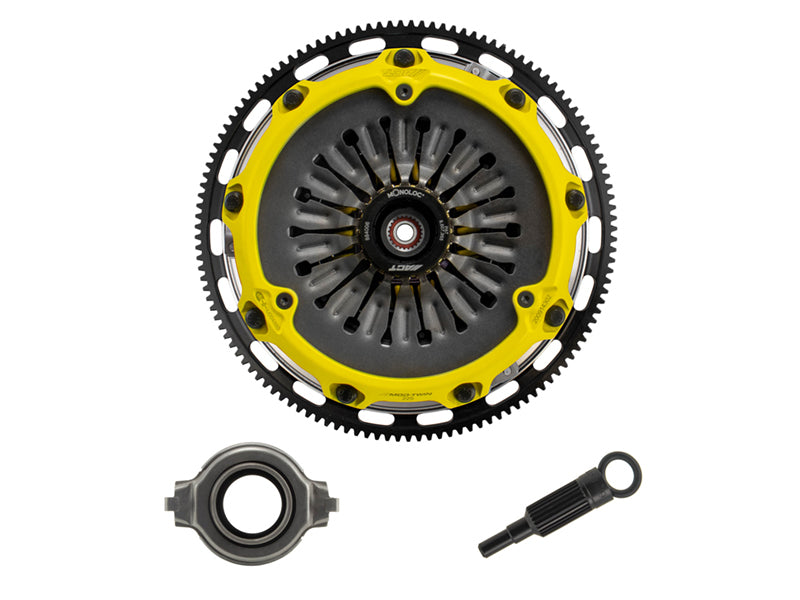

T1S-S07 Mod-Twin 225 HD Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWDs by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

This Part Fits:

Year Make Model Submodel
2004-2014 Subaru Impreza WRX STI
2007,2011-2014 Subaru Impreza WRX STI Limited
2010 Subaru Impreza WRX STI Special Edition
2015-2021 Subaru WRX STI Base
2015 Subaru WRX STI Launch Edition
2015-2021 Subaru WRX STI Limited
2020 Subaru WRX STI S209
2016 Subaru WRX STI Series.HyperBlue
2018 Subaru WRX STI Type RA
View full details
