ACT Subaru 04-20 WRX STI Mod Twin XT Street Kit Unsprung Mono-Drive Hub Torque Capacity 875ft/lbs
ACT Subaru 04-20 WRX STI Mod Twin XT Street Kit Unsprung Mono-Drive Hub Torque Capacity 875ft/lbs
Regular price
$1,591.73 USD
Regular price
$2,021.00 USD
Sale price
$1,591.73 USD
Unit price
per
Couldn't load pickup availability

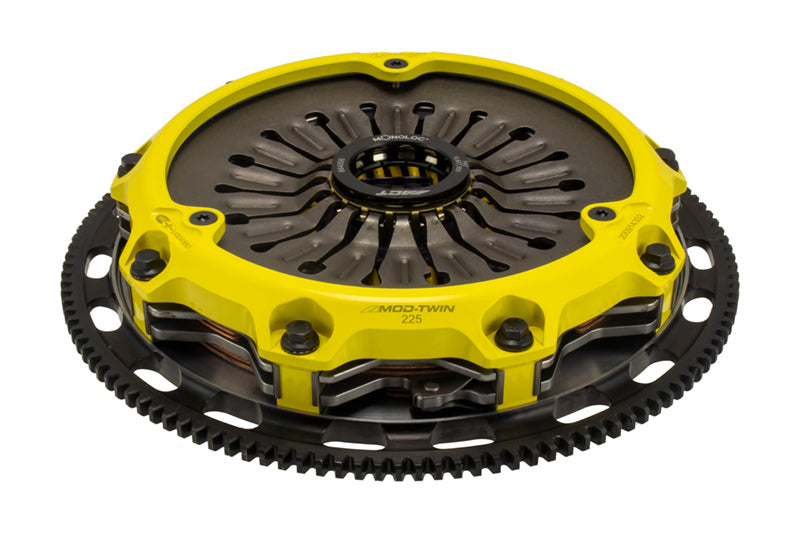

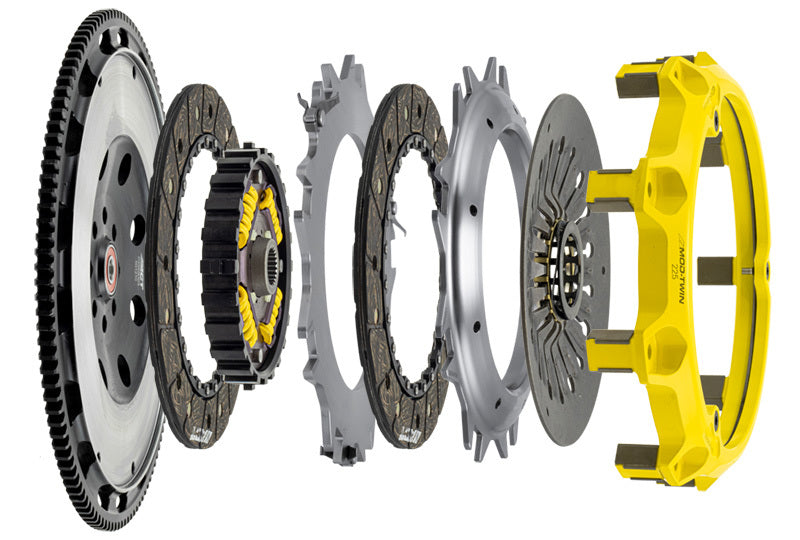

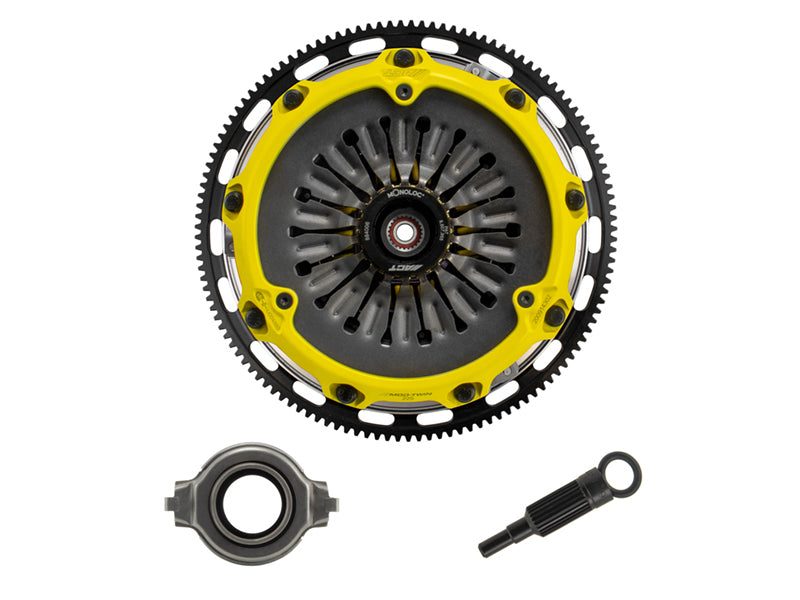

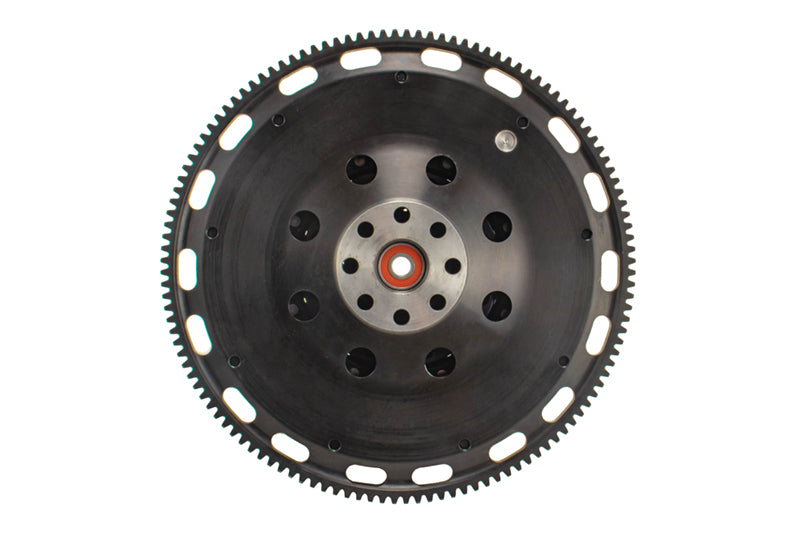

T2S-S07 Mod-Twin 225 XT Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWD’s by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
This Part Fits:
This Part Fits:
Year | Make | Model | Submodel |
---|---|---|---|
2004-2014 | Subaru | Impreza | WRX STI |
2007,2011-2014 | Subaru | Impreza | WRX STI Limited |
2010 | Subaru | Impreza | WRX STI Special Edition |
2015-2021 | Subaru | WRX STI | Base |
2015 | Subaru | WRX STI | Launch Edition |
2015-2021 | Subaru | WRX STI | Limited |
2019 | Subaru | WRX STI | S209 |
2016 | Subaru | WRX STI | Series.HyperBlue |
2018 | Subaru | WRX STI | Type RA |
